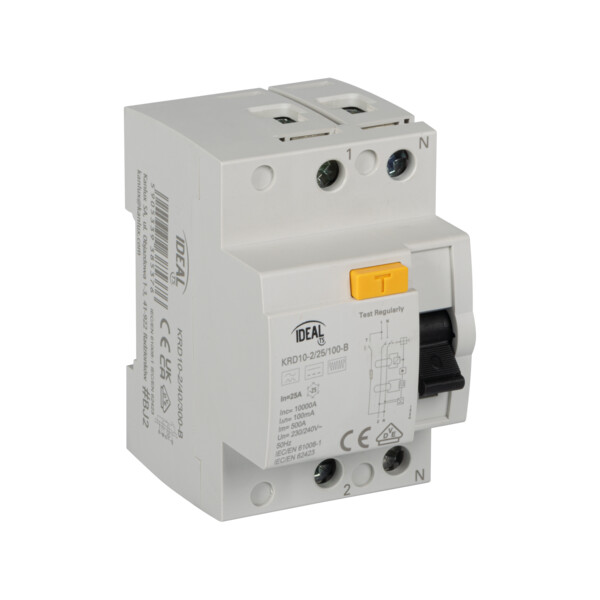

KRD10-2/25/100-B
Residual-current circuit breaker, 2P
Product code: 38533
complies with a standard PN-EN 61008-1
5-year warranty
compare
ask for product Residual-current circuit breaker, 2P IDEAL TS by Kanlux brand
Up to 5 year warranty
Product Family
See other products from the same family
KRD10-2/25/30-B Residual-current circuit breaker, 2P Product code: 38530
KRD10-2/40/30-B Residual-current circuit breaker, 2P Product code: 38531
KRD10-2/63/30-B Residual-current circuit breaker, 2P Product code: 38532
KRD10-2/40/100-B Residual-current circuit breaker, 2P Product code: 38534
KRD10-2/63/100-B Residual-current circuit breaker, 2P Product code: 38535
KRD10-2/25/300-B Residual-current circuit breaker, 2P Product code: 38536
KRD10-2/40/300-B Residual-current circuit breaker, 2P Product code: 38537
KRD10-2/63/300-B Residual-current circuit breaker, 2P Product code: 38538
Specification
Basic Information
Parameters
Rated voltage [V]
230 AC
Rated frequency [Hz]
50
Colour
white
Rated current [A]
25
Differential-rated current [mA]
100
Range of sections of wires used [mm2]
do 35
Ambient temperature range to which the product can be exposed
-25÷40
IP class
20
Residual-current protection type
B
Rated activation capacity[A]
10000
Number of modules
3
Application
2
Width [mm]
54
Height [mm]
85
Length [mm]
70
Place of assembly
na szynę TH35
Norm
PN-EN 61008-1
Rated insulation voltage UI [V]
400
Producent
Kanlux SA
ul. Objazdowa 1-3,
41-922 Radzionków, Polska
ul. Objazdowa 1-3,
41-922 Radzionków, Polska
Certificates
Downloads
Catalogue card
Download
Deklaracja zgodności
Download
Technical sheet
Download
Family sheet
Download
IDEAL TS by Kanlux 2024 Catalogue
Download
