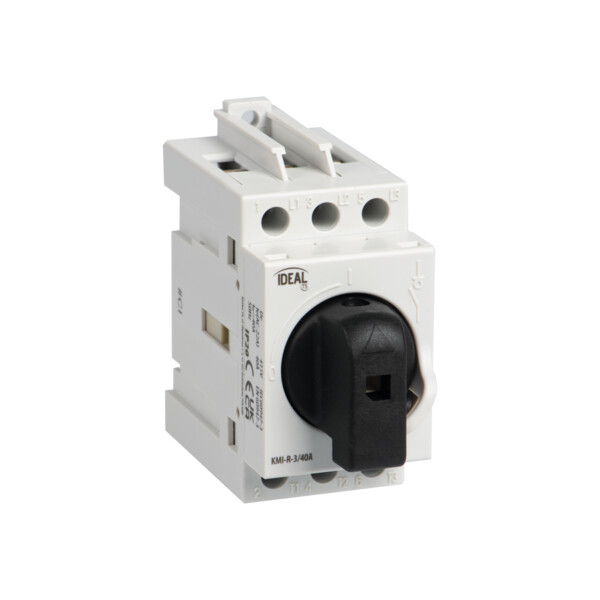

KMI-R-3/40A
Modular switch disconnector
Product code: 23238
complies with a standard PN-EN 60947-3
5-year warranty
compare
ask for product
Consistent design
Product Family
See other products from the same family
Specification
Basic Information
Parameters
Rated voltage [V]
415 AC
Rated frequency [Hz]
50
Utilisation category
AC-22A / AC-23A
Number of modules
2
Place of application
Indoors
Rated current [A]
40
IP class
20
Connection type
Terminal block
Range of sections of wires used [mm2]
1-16
Width [mm]
36
Height [mm]
81
Length [mm]
77
Norm
PN-EN 60947-3
Rated operational current Ie [A]
40 (AC-22A) / 40 (AC-23A)
Rated insulation voltage UI [V]
800
Rated impulse withstand voltage Uimp [V]
6000
Application
3
Control type
mechaniczne
Producent
Kanlux SA
ul. Objazdowa 1-3,
41-922 Radzionków, Polska
ul. Objazdowa 1-3,
41-922 Radzionków, Polska
Certificates
Downloads
Catalogue card
Download
Deklaracja zgodności
Download
Technical sheet
Download
Family sheet
Download
