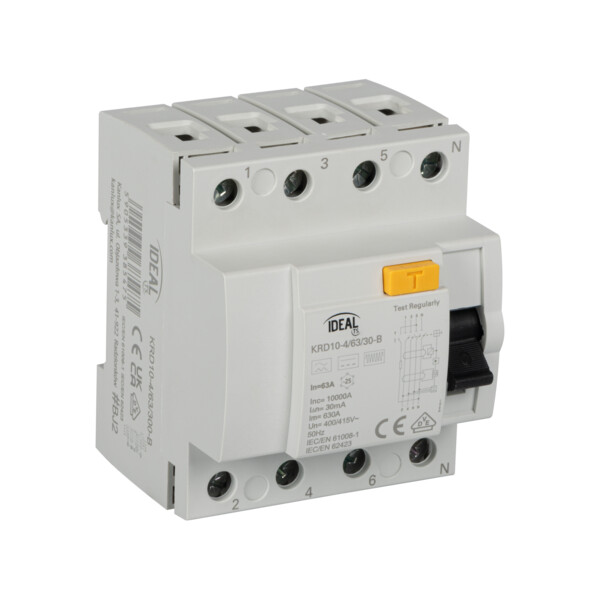

KRD10-4/63/30-B
Residual-current circuit breaker, 4P
Product code: 38541
complies with a standard PN-EN 61008-1
5-year warranty
compare
ask for product Residual-current circuit breaker, 4P IDEAL TS by Kanlux brand
Up to 5 year warranty
Product Family
See other products from the same family

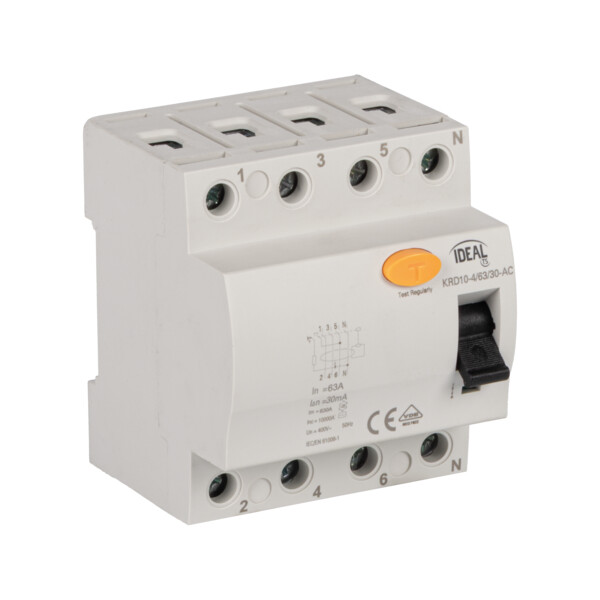

KRD10-4/63/30-AC Residual-current circuit breaker, 4P Product code: 38745
KRD10-4/63/30-A Residual-current circuit breaker, 4P Product code: 38746

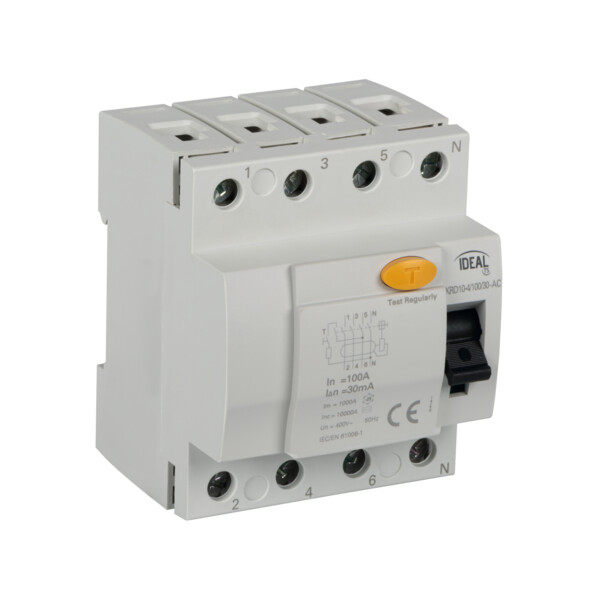

KRD10-4/100/30-AC Residual-current circuit breaker, 4P Product code: 38733

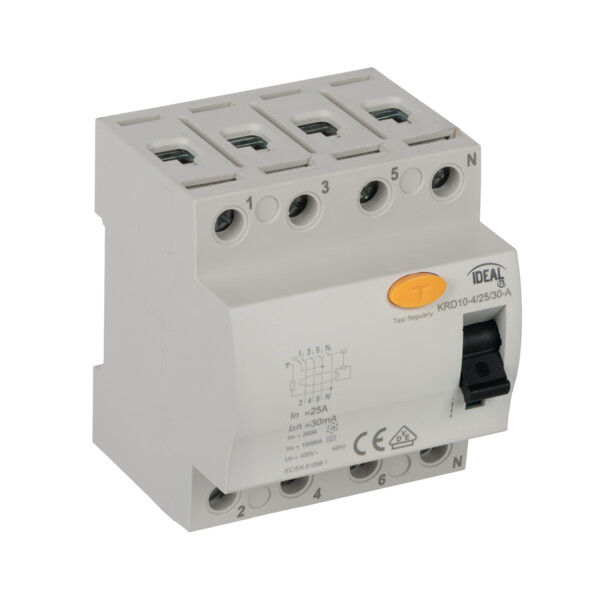

KRD10-4/25/30-A Residual-current circuit breaker, 4P Product code: 38738

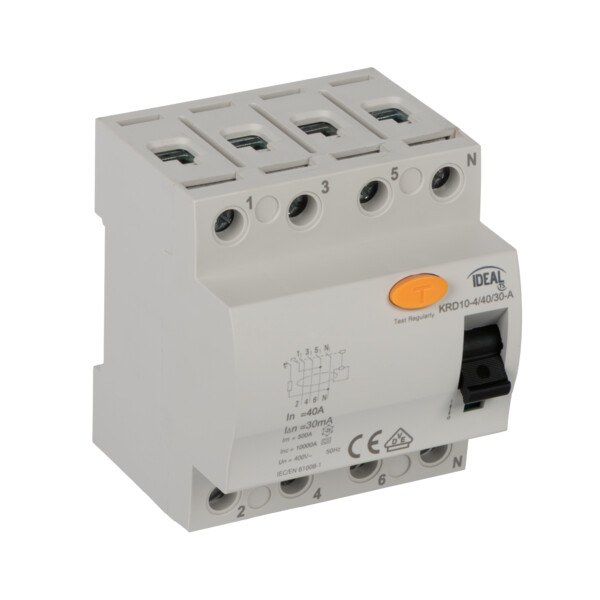

KRD10-4/40/30-A Residual-current circuit breaker, 4P Product code: 38742
KRD10-4/25/30-AC Residual-current circuit breaker, 4P Product code: 38737
KRD10-4/40/30-AC Residual-current circuit breaker, 4P Product code: 38741
KRD10-4/25/30-B Residual-current circuit breaker, 4P Product code: 38539
KRD10-4/40/30-B Residual-current circuit breaker, 4P Product code: 38540
KRD10-4/25/100-B Residual-current circuit breaker, 4P Product code: 38542
KRD10-4/40/100-B Residual-current circuit breaker, 4P Product code: 38543
KRD10-4/63/100-B Residual-current circuit breaker, 4P Product code: 38544
KRD10-4/25/300-B Residual-current circuit breaker, 4P Product code: 38545
KRD10-4/40/300-B Residual-current circuit breaker, 4P Product code: 38546
KRD10-4/63/300-B Residual-current circuit breaker, 4P Product code: 38547
Specification
Basic Information
Parameters
Warranty [years]
2
Rated voltage [V]
400 AC
Rated frequency [Hz]
50
Colour
white
Rated current [A]
63
Differential-rated current [mA]
30
Range of sections of wires used [mm2]
do 35
Ambient temperature range to which the product can be exposed
-25÷40
IP class
20
Residual-current protection type
B
Rated activation capacity[A]
10000
Number of modules
4
Application
4
Width [mm]
72
Height [mm]
86.7
Length [mm]
73
Place of assembly
na szynę TH35
Norm
PN-EN 61008-1
Rated insulation voltage UI [V]
400
Producent
Kanlux SA
ul. Objazdowa 1-3,
41-922 Radzionków, Polska
ul. Objazdowa 1-3,
41-922 Radzionków, Polska
Certificates
Downloads
Catalogue card
Download
Deklaracja zgodności
Download
Technical sheet
Download
Family sheet
Download
IDEAL TS by Kanlux 2024 Catalogue
Download
