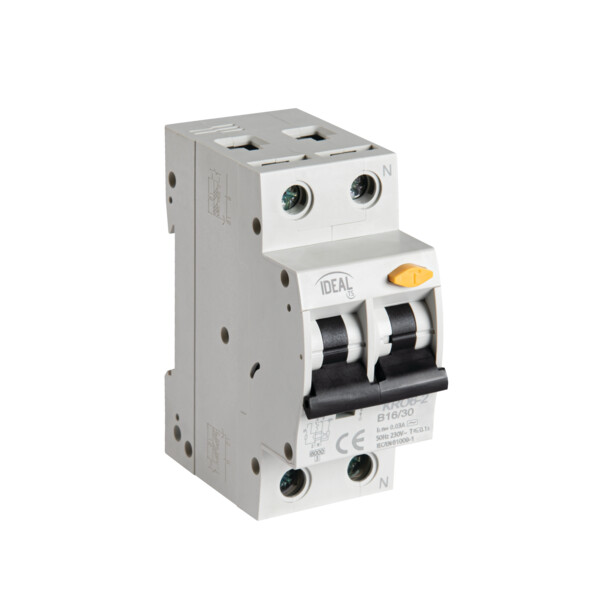

KRO6-2/B16/30

Residual-current circuit breaker with overcurrent module, 6kA, 2P

Product code: 23210

Residual current device with overcurrent protection is used to protect against overloads and short circuits in installations and devices, as well as to protect against electric shock.

complies with a standard
PN-EN 61009 -1
5-year warranty
Scroll to full specification

Catalogue price

78,13 zł / p. Save in my products

Residual-current circuit breaker with overcurrent module, 6kA, 2P IDEAL TS by Kanlux brand

Up to 5 year warranty

Ergonomic design

Bus bars above and below PIN and U

Product Family

See other products from the same family

Specification

Basic Information

Parameters
Rated voltage [V] 230 AC
Rated frequency [Hz] 50
Colour white
Rated current [A] 16
Differential-rated current [mA] 30
Range of sections of wires used [mm2] 10÷16
Ambient temperature range to which the product can be exposed -25÷40
IP class 20
Residual-current protection type AC
Rated short-circuit current [A] 6000
Energy-limit class 3
Release characteristics B
Number of modules 2
Application 2
Width [mm] 35
Height [mm] 81
Length [mm] 75
Place of assembly na szynę TH35
Norm PN-EN 61009 -1
Rated insulation voltage UI [V] 400
Certificates
EAC UkrSepro

Downloads

Catalogue card

Download

Deklaracja zgodności

Download

Technical sheet

Download

Family sheet

Download

IDEAL TS by Kanlux 2024 Catalogue

Download
