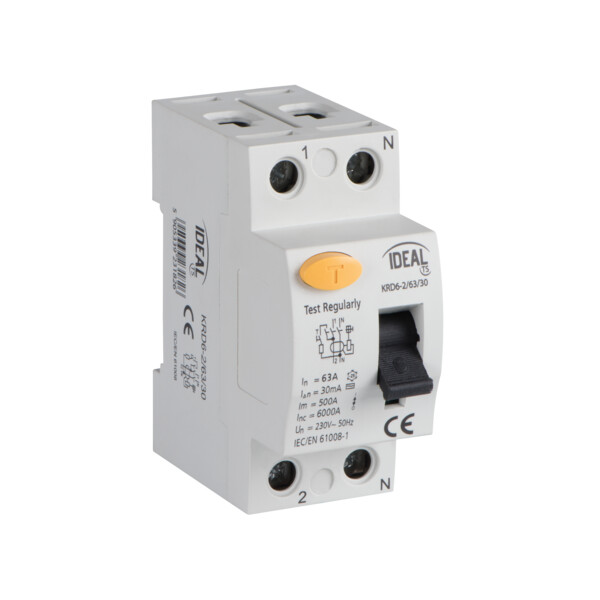

KRD6-2/63/30

Residual-current circuit breaker, 2P

Product code: 23182

Residual current circuit breaker: is used for additional protection against electric shock, designed for work in sinusoidal alternating current circuits (AC type) and sinusoidal alternating and pulsating current with DC component (A type).

complies with a standard
PN-EN 61008-1
5-year warranty
Scroll to full specification

Catalogue price

78,52 zł / p. Save in my products
compare ask for product

Residual-current circuit breaker, 2P IDEAL TS by Kanlux brand

Up to 5 year warranty

Ergonomic design

Bus bars above and below PIN and U

Product Family

See other products from the same family


KRD6-2/40/100 Residual-current circuit breaker, 2P Product code: 23203
KRD6-2/63/100 Residual-current circuit breaker, 2P Product code: 23204
KRD6-2/25/100-A Residual-current circuit breaker, 2P Product code: 23225
KRD6-2/40/100-A Residual-current circuit breaker, 2P Product code: 23226
KRD6-2/16/10 Residual-current circuit breaker, 2P Product code: 23186
KRD6-2/16/10-A Residual-current circuit breaker, 2P Product code: 23194
KRD6-2/25/30-A Residual-current circuit breaker, 2P Product code: 23188
KRD6-2/25/30 Residual-current circuit breaker, 2P Product code: 23180
KRD6-2/40/30 Residual-current circuit breaker, 2P Product code: 23181
KRD6-2/40/30-A Residual-current circuit breaker, 2P Product code: 23189
KRD6-2/25/300 Residual-current circuit breaker, 2P Product code: 23195
KRD6-2/25/100 Residual-current circuit breaker, 2P Product code: 23187

Specification

Basic Information

Parameters
Rated voltage [V] 230 AC
Rated frequency [Hz] 50
Colour white
Rated current [A] 63
Differential-rated current [mA] 30
Range of sections of wires used [mm2] do 35
Ambient temperature range to which the product can be exposed -25÷40
IP class 20
Residual-current protection type AC
Rated activation capacity[A] 6000
Number of modules 2
Application 2
Width [mm] 35
Height [mm] 81
Length [mm] 75
Place of assembly na szynę TH35
Norm PN-EN 61008-1
Rated insulation voltage UI [V] 400
Producent Kanlux SA
ul. Objazdowa 1-3,
41-922 Radzionków, Polska
Certificates
EAC VDE UkrSepro

Downloads

Catalogue card

Download

Deklaracja zgodności

Download

Certyfikat VDE

Download

Technical sheet

Download

Family sheet

Download

IDEAL TS by Kanlux 2024 Catalogue

Download
